PDRH5D18 Series 3.3μH~330μH SMD Shield Power Inductors Round Size

All Products

Customer customization (28)

Wurth replace (31)

EPCOS/TDK replace (9)

Murata / coilcraft replace (2)

Drum core inductor (19)

Unshielded SMD Power Inductors (35)

Shielded SMD Power Inductors (101)

Toroid choke (10)

SMD High current inductors (40)

Flat Wire Inductor/Common Mode Choke (31)

Digital amplifier inductors (13)

SMD common mode choke (13)

Current transformer (3)

ET/UU/EE Filters (11)

Axial Inductor/Air coil (20)

Toroid Common mode choke (20)

EE Type High-frequency transformer (18)

EEL Type High-frequency transformer (7)

EI Type High-frequency transformer (8)

EPC Type High-frequency transformer (8)

EF Type High-frequency transformer (7)

EFD Type High-frequency transformer (11)

ER Type High-frequency transformer (14)

ETD Type High-frequency transformer (7)

ERL Type High-frequency transformer (5)

EP Type High-frequency transformer (7)

POT Type High-frequency transformer (5)

PQ Type High-frequency transformer (19)

RM Type High-frequency transformer (9)

Led Transformer Inductors (13)

EQ/ATQ/CQ Type High-frequency transformer (4)

Certification

I'm Online Chat Now

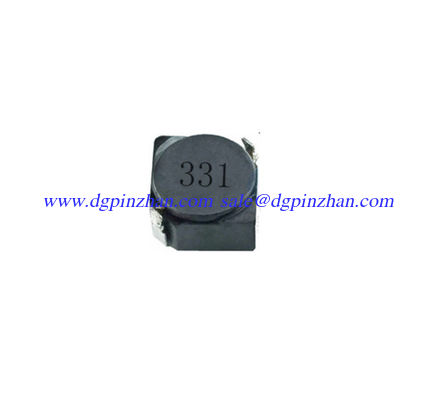

PDRH5D18 Series 3.3μH~330μH SMD Shield Power Inductors Round Size

Large Image : PDRH5D18 Series 3.3μH~330μH SMD Shield Power Inductors Round Size

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	P&Z
Certification:	ISO9001:2015
Model Number:	PDRH5D18 Series

Payment & Shipping Terms:

Minimum Order Quantity:	2000PCS
Price:	To be confirmed
Packaging Details:	Reel+Carton
Delivery Time:	around 3-4 Weeks
Payment Terms:	T / T in advance
Supply Ability:	1000k

Contact Now

Detailed Product Description

PDRH5D18 Series 3.3μH~330μH SMD Shield Power Inductors Round Size

PDRH5D18 Series SMD Power Inductors

Features:

Inductance Range: 3.3μH~330μH

Temperature Range:－40℃～＋125℃

★Quantity / Reel:2000pcs

★Small products, Quadrate6.0mm Max, Height 2.0mm Type.

★The use of carrier tape package for SMT reflow soldering process

★Widely use in DC-DC converter/LCD TV/Notebook/PDA/MP3 & MP4 player/Digital camera/DVD etc.

★Design to customer requirement.

Electrical Characteristics:

Part Number	Test Condition	Inductance (μH)	Tolerance (%)	D.C.R(Ω) Max.	Rated Current(A)
PDRH5D18-3R3M,N	10KHz/0.1V	3.3	±20,±30	47m	2.07
PDRH5D18-4R1M,N	10KHz/0.1V	4.1	±20,±30	57m	1.95
PDRH5D18-5R4M,N	10KHz/0.1V	5.4	±20,±30	76m	1.60
PDRH5D18-6R2M,N	10KHz/0.1V	6.2	±20,±30	96m	1.40
PDRH5D18-6R8M,N	10KHz/0.1V	6.8	±20,±30	96m	1.30
PDRH5D18-8R9M,N	10KHz/0.1V	8.9	±20,±30	0.116	1.25
PDRH5D18-100M,N	10KHz/0.1V	10	±20,±30	0.124	1.20
PDRH5D18-120M,N	10KHz/0.1V	12	±20,±30	0.153	1.10
PDRH5D18-150M,N	10KHz/0.1V	15	±20,±30	0.196	0.97
PDRH5D18-180M,N	10KHz/0.1V	18	±20,±30	0.210	0.85
PDRH5D18-220M,N	10KHz/0.1V	22	±20,±30	0.290	0.80
PDRH5D18-270M,N	10KHz/0.1V	27	±20,±30	0.330	0.75
PDRH5D18-330M,N	10KHz/0.1V	33	±20,±30	0.386	0.65
PDRH5D18-390M,N	10KHz/0.1V	39	±20,±30	0.520	0.57
PDRH5D18-470M,N	10KHz/0.1V	47	±20,±30	0.595	0.54
PDRH5D18-560M,N	10KHz/0.1V	56	±20,±30	0.665	0.50
PDRH5D18-680M,N	10KHz/0.1V	68	±20,±30	0.840	0.43
PDRH5D18-820M,N	10KHz/0.1V	82	±20,±30	0.978	0.41
PDRH5D18-101M,N	10KHz/0.1V	100	±20,±30	1.200	0.36
PDRH5D18-121M,N	10KHz/0.1V	120	±20,±30	1.500	0.33
PDRH5D18-151M,N	10KHz/0.1V	150	±20,±30	1.710	0.31
PDRH5D18-181M,N	10KHz/0.1V	180	±20,±30	2.240	0.28
PDRH5D18-221M,N	10KHz/0.1V	220	±20,±30	2.440	0.23
PDRH5D18-271M,N	10KHz/0.1V	270	±20,±30	3.380	0.21
PDRH5D18-331M,N	10KHz/0.1V	330	±20,±30	4.340	0.18

1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃). PDRH5D18 Series 3.3μH~330μH SMD Shield Power Inductors Round Size
