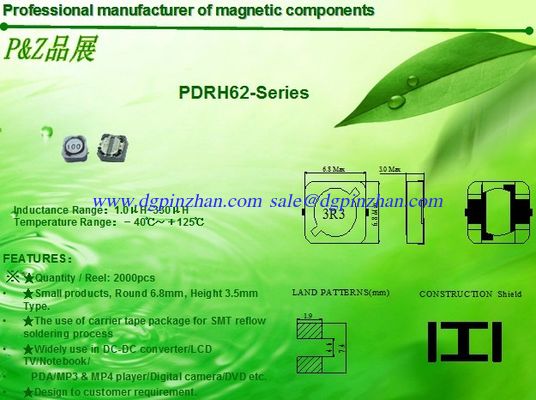

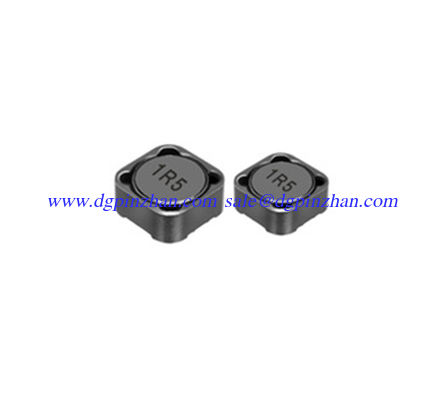

 PDRH62 Series Square  Nickel core material High quality competitive shielded   SMD Power Inductors

PDRH62 Series SMD Power Inductors

Features:

Inductance Range: 3.3μH~330μH

Temperature Range:-40℃~+125℃

★Quantity / Reel: 2000pcs

★High current & low DCR, Quadrate6.8mm Max, Height 3.0mm Max.

★The use of carrier tape package for SMT reflow soldering process

★Widely use in DC-DC converter/LCD TV/Notebook/

PDA/MP3 & MP4 player/Digital camera/DVD etc.

★Design to customer requirement.

Electrical Characteristics:

P&Z Part Number

Test Condition

Inductance  (μH)

Tolerance (%)

D.C.R(Ω) Max.

Rated Current(A)

PDRH62-3R3M,N

100KHz/0.3V

3.3

±20,±30

68m

1.94

PDRH62-4R7M,N

100KHz/0.3V

4.7

±20,±30

80m

1.63

PDRH62-5R6M,N

100KHz/0.3V

5.6

±20,±30

96m

1.40

PDRH62-100M

1KHz/0.3V

10

±20

150m

1.10

PDRH62-120M

1KHz/0.3V

12

±20

200m

1.00

PDRH62-150M

1KHz/0.3V

15

±20

0.23

0.90

PDRH62-180M

1KHz/0.3V

18

±20

0.27

0.80

PDRH62-220M

1KHz/0.3V

22

±20

0.34

0.74

PDRH62-270M

1KHz/0.3V

27

±20

0.38

0.66

PDRH62-330M

1KHz/0.3V

33

±20

0.45

0.59

PDRH62-390M

1KHz/0.3V

39

±20

0.49

0.54

PDRH62-470M

1KHz/0.3V

47

±20

0.69

0.50

PDRH62-560M

1KHz/0.3V

56

±20

0.78

0.46

PDRH62-680M

1KHz/0.3V

68

±20

1.07

0.42

PDRH62-820M

1KHz/0.3V

82

±20

1.21

0.38

PDRH62-101M

1KHz/0.3V

100

±20

1.39

0.34

PDRH62-121M

1KHz/0.3V

120

±20

1.90

0.31

PDRH62-151M

1KHz/0.3V

150

±20

2.18

0.28

PDRH62-181M

1KHz/0.3V

180

±20

2.77

0.26

PDRH62-221M

1KHz/0.3V

220

±20

3.12

0.23

PDRH62-271M

1KHz/0.3V

270

±20

4.38

0.22

PDRH62-331M

1KHz/0.3V

330

±20

4.94

0.19



1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value
or the temperature rise is △T=40℃ ,whichever is smaller(Ta=20℃).

Acceptable customers design cust
