PDC7816 Series SMD Power Inductors

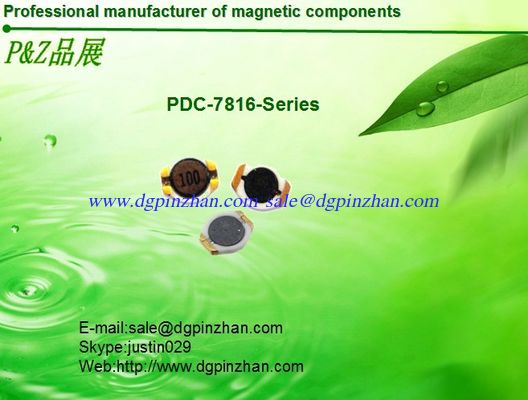

Large Image : PDC7816 Series SMD Power Inductors

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	P&Z
Certification:	ISO9001:2015
Model Number:	PDC7816 Series

Payment & Shipping Terms:

Minimum Order Quantity:	1Reel
Price:	To be confirmed
Packaging Details:	Reel+Carton
Delivery Time:	around 3-4 Weeks
Payment Terms:	T / T in advance
Supply Ability:	1000K

Contact Now

Detailed Product Description

PDC7816 Series SMD Power Inductors

Inductance Range: 1.0μH~1000μH

Temperature Range:－40℃～＋125℃

★Quantity / Reel: 2500pcs

★Small products, Elliptic 7.87mm*9.14mm, Height 1.5mm Type.

★The use of carrier tape package for SMT reflow soldering process

★Widely use in DC-DC converter/LCD TV/Notebook/

PDA/MP3 & MP4 player/Digital camera/DVD etc.

★Design to customer requirement

P&Z Part Number	Test Condition	Inductance (μH)	Tolerance (%)	D.C.R(Ω) Max.	Rated Current
P&Z Part Number	Test Condition	Inductance (μH)	Tolerance (%)	D.C.R(Ω) Max.	Isat(A)	Irms(A)
PDC7816-4R7M	100KHz/0.1V	4.7	±20	0.145	1.60	1.90
PDC7816-5R0M	100KHz/0.1V	5.0	±20	0.145	1.60	1.90
PDC7816-6R8M	100KHz/0.1V	6.8	±20	0.165	1.30	1.70
PDC7816-100M	100KHz/0.1V	10	±20	0.240	1.00	1.50
PDC7816-150M	100KHz/0.1V	15	±20	0.300	0.90	1.30
PDC7816-220M	100KHz/0.1V	22	±20	0.420	0.70	1.00
PDC7816-330M	100KHz/0.1V	33	±20	0.550	0.60	0.90
PDC7816-470M	100KHz/0.1V	47	±20	0.765	0.50	0.70
PDC7816-680M	100KHz/0.1V	68	±20	1.100	0.40	0.60
PDC7816-101M	100KHz/0.1V	100	±20	1.600	0.30	0.50
PDC7816-151M	100KHz/0.1V	150	±20	2.500	0.25	0.40
PDC7816-221M	100KHz/0.1V	220	±20	3.650	0.22	0.32
PDC7816-331M	100KHz/0.1V	330	±20	4.650	0.18	0.28
PDC7816-471M	100KHz/0.1V	470	±20	6.750	0.14	0.24
PDC7816-102M	100KHz/0.1V	1000	±20	14.200	0.10	0.16

1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).

♦Acceptable customers design cust
