PZ-UU10A Series Suppression of general common mode noise Replace Murata PLA10AN Series Power Lines filter
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| L:: | 1.5~43mH | DCR: | 150mΩ~4.0Ω |
|---|---|---|---|
| Rated Current: | 0.3A~2.0A | Type: | EMC Filter |
| Transfer Function: | Low Pass | Package Type: | Blister + Carton |

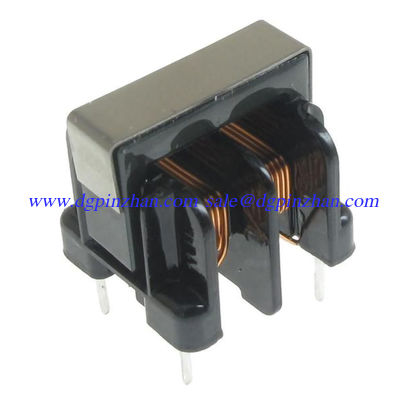

PZ-UU10A-Series Common Mode Choke Line Filter
Features
1. Compact and light weight
2. Low profile in vertical core layout
3. Both a standard winding type and a sectional
winding type for higher frequency noise are
available.
Application:
Suppression of general common mode noise Noise suppression of AC power lines
Dimensions: [mm]
Electrical Properties:
| Part Code | Inductance | Test conditions | DC-Resistance | Rated Current | Murata code | |
| PZ-UU10A-152M | 1.5mH Min | 1KHZ/0.25V | 150mΩ Max | 2.0A Max | PLA10AN1522R0R2 | |
| PZ-UU10A-182M | 1.8mH Min | 1KHZ/0.25V | 180mΩ Max | 1.7A Max | PLA10AN1821R7R2 | |
| PZ-UU10A-222M | 2.2mH Min | 1KHZ/0.25V | 220mΩ Max | 1.5A Max | PLA10AN2221R5R2 | |
| PZ-UU10A-302M | 3.0mH Min | 1KHZ/0.25V | 260mΩ Max | 1.3A Max | PLA10AN3021R3R2 | |
| PZ-UU10A-352M | 3.5mH Min | 1KHZ/0.25V | 320mΩ Max | 1.2A Max | PLA10AN3521R2R2 | |
| PZ-UU10A-552M | 5.5mH Min | 1KHZ/0.25V | 460mΩ Max | 1.0A Max | PLA10AN5521R0R2 | |
| PZ-UU10A-742M | 7.4mH Min | 1KHZ/0.25V | 640mΩ Max | 0.8A Max | PLA10AN7420R8R2 | |
| PZ-UU10A-103M | 10.0mH Min | 1KHZ/0.25V | 860mΩ Max | 0.7A Max | PLA10AN1030R7R2 | |
| PZ-UU10A-123M | 12.0mH Min | 1KHZ/0.25V | 1.2Ω Max | 0.6A Max | PLA10AN1230R6R2 | |
| PZ-UU10A-203M | 20.0mH Min | 1KHZ/0.25V | 1.8Ω Max | 0.5A Max | PLA10AN2030R5R2 | |
| PZ-UU10A-303M | 30.0mH Min | 1KHZ/0.25V | 2.7Ω Max | 0.4A Max | PLA10AN3030R4R2 | |
| PZ-UU10A-433M | 43.0mH Min | 1KHZ/0.25V | 4.0Ω Max | 0.3A Max | PLA10AN4330R3R2 | |
