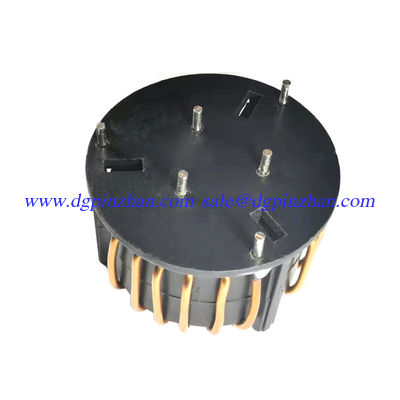

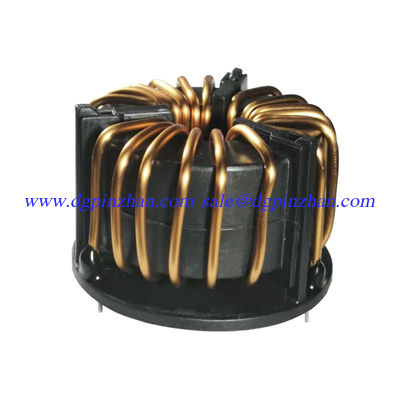

PZ-TCM403H Series toroidal Nanocrystalline Material Three-phase common mode power lin e choke Suppression noise
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Nanocrystalline | Dimension:: | Ｄ58＊Ｈ38 |
|---|---|---|---|
| L: | 5mH~30mH | Current: | 4Ａ~22A |
| ＤＣＲ: | 3.8mΩ~38.5mΩ | Test Frequency: | 10KHZ/0.25V |
Dimensions: [mm]
Characteristics
- Core material: Nanocrystalline
- Broadband filterring due to low capacitance winding technique
- High suppression of asymmetrical interferences also at low frequency range
- Very compact design
- Highest possible rated current by small size
- Operating temperature: –40 ºC to +125 ºC
Applications
- Power electronics
- Power line in- and output filter
- Filterring of devices without any ground connection
- Suppression of radio interferences in motors
- Suppression of common mode noise
Electrical Properties:
| Part Code | Inductance (mH) ±30% | Test conditions | DC-Resistance (mΩ) | Rated Current (A) | Pin Diameter (mm) | Hi-pot | |
|---|---|---|---|---|---|---|---|
| PZ-TCM403H-502M | 5*3 | 10KHZ/0.25V | 3.8mΩ Max | 22A Max | 2.00 | 2000Vrms | |
| PZ-TCM403H-702M | 7*3 | 10KHZ/0.25V | 8.5mΩ Max | 20A Max | 1.80 | 2000Vrms | |
| PZ-TCM403H-103M | 10*3 | 10KHZ/0.25V | 9.2mΩ Max | 15A Max | 1.70 | 2000Vrms | |
| PZ-TCM403H-153M | 15*3 | 10KHZ/0.25V | 12.5mΩ Max | 10A Max | 1.60 | 2000Vrms | |
| PZ-TCM403H-203M | 203 | 10KHZ/0.25V | 19mΩ Max | 9A Max | 1.50 | 2000Vrms | |
| PZ-TCM403H-253M | 25*3 | 10KHZ/0.25V | 25.2mΩ Max | 6A Max | 1.40 | 2000Vrms | |
| PZ-TCM403H-303M | 30*3 | 10KHZ/0.25V | 38.5mΩ Max | 4A Max | 1.30 | 2000Vrms | |
Contact us♦Acceptable customers design custom
