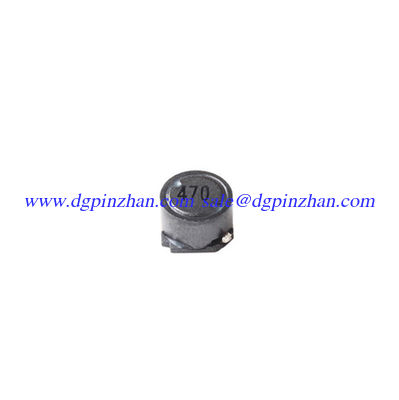

PDRB7635 Series 1.0μH~100μH Low resistance, competitive price, high quality round SMD power inductor

PDRB7635 Series SMD Power Inductors

Features:

Inductance Range: 1.0μH~100μH

Temperature Range:-40℃~+125℃

★Quantity / Reel: 1000pcs

High current & low DCR, Quadrate7.4mm Max, Heigh3.6mm Type.

★The use of carrier tape package for SMT reflow soldering process

★Widely use in DC-DC converter/LCD TV/Notebook/PDA/MP3 & MP4 player/Digital camera/DVD etc.

★Design to customer requirement.

Electrical Characteristics

P&Z  Part Number

Test Condition

Inductance  (μH)

Tolerance (%)

D.C.R(mΩ) Max.

Rated Current(A)

PDRB7635-1R0M

100KHz/0.3V

1.0

±20

19

3.12

PDRB7635-1R5M

100KHz/0.3V

1.5

±20

23

2.85

PDRB7635-2R2M

100KHz/0.3V

2.2

±20

28

2.66

PDRB7635-3R3M

100KHz/0.3V

3.3

±20

35

2.26

PDRB7635-4R7M

100KHz/0.3V

4.7

±20

43

1.96

PDRB7635-6R8M

100KHz/0.3V

6.8

±20

55

1.76

PDRB7635-100M

1KHz/0.3V

10

±20

80

1.34

PDRB7635-120M

1KHz/0.3V

12

±20

90

1.23

PDRB7635-150M

1KHz/0.3V

15

±20

120

1.09

PDRB7635-180M

1KHz/0.3V

18

±20

130

0.99

PDRB7635-220M

1KHz/0.3V

22

±20

150

0.90

PDRB7635-270M

1KHz/0.3V

27

±20

210

0.81

PDRB7635-330M

1KHz/0.3V

33

±20

250

0.72

PDRB7635-390M

1KHz/0.3V

39

±20

310

0.67

PDRB7635-470M

1KHz/0.3V

47

±20

350

0.60

PDRB7635-560M

1KHz/0.3V

56

±20

430

0.55

PDRB7635-680M

1KHz/0.3V

68

±20

520

0.50

PDRB7635-820M

1KHz/0.3V

82

±20

600

0.46

PDRB7635-101M

1KHz/0.3V

100

±20

790

0.41

1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value
or the temperature rise is △T=40℃ ,whichever is smaller(Ta=20℃).
