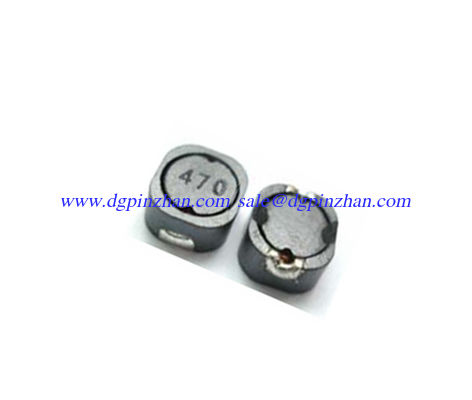

PDRA6030 Series  1.0μH~100μH low resistance, competitive price, high quality elliptical SMD power inductor

PDRA6030 Series SMD Power Inductors

Features:

Inductance Range: 1.0μH~100μH

Temperature Range:-40℃~+125℃

★Quantity / Reel: 2000pcs

Small products, Quadrate6.3mm*6.6mm, Heigh3.2mm Type.

★The use of carrier tape package for SMT reflow soldering process

★Widely use in DC-DC converter/LCD TV/Notebook/PDA/MP3 & MP4 player/Digital camera/DVD etc.

★Design to customer requirement.

Electrical Characteristics:

P&Z Part Number

Test Condition

Inductance  (μH)

Tolerance (%)

D.C.R(Ω) Max.

Rated Current(A)

PDRA6030-1R0N

100KHz/0.3V

1.0

±30

15m

3.59

PDRA6030-1R5N

100KHz/0.3V

1.5

±30

18m

2.93

PDRA6030-2R2N

100KHz/0.3V

2.2

±30

22m

2.42

PDRA6030-3R3N

100KHz/0.3V

3.3

±30

26m

2.10

PDRA6030-3R6N

100KHz/0.3V

3.6

±30

29m

1.89

PDRA6030-4R7N

100KHz/0.3V

4.7

±30

38m

1.66

PDRA6030-6R2N

100KHz/0.3V

6.2

±30

45m

1.45

PDRA6030-100M

1KHz/0.3V

10

±20

69m

1.14

PDRA6030-120M

1KHz/0.3V

12

±20

73m

1.04

PDRA6030-150M

1KHz/0.3V

15

±20

87m

0.93

PDRA6030-180M

1KHz/0.3V

18

±20

104m

0.85

PDRA6030-220M

1KHz/0.3V

22

±20

133m

0.77

PDRA6030-270M

1KHz/0.3V

27

±20

0.168

0.70

PDRA6030-330M

1KHz/0.3V

33

±20

0.196

0.63

PDRA6030-390M

1KHz/0.3V

39

±20

0.210

0.58

PDRA6030-470M

1KHz/0.3V

47

±20

0.259

0.53

PDRA6030-560M

1KHz/0.3V

56

±20

0.308

0.48

PDRA6030-680M

1KHz/0.3V

68

±20

0.378

0.44

PDRA6030-820M

1KHz/0.3V

82

±20

0.462

0.40

PDRA6030-101M

1KHz/0.3V

100

±20

0.527

0.36

1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value
or the temperature rise is △T=40℃ ,whichever is smaller(Ta=20℃).
