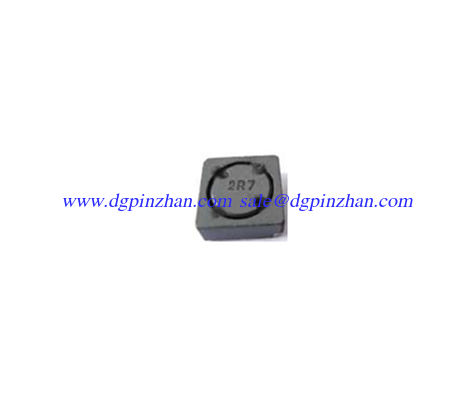

PDRA106 Series 0.56μH~5.6μH low resistance, competitive price, high quality elliptical SMD power inductor

PDRA106 Series SMD Power Inductors

Features:

Inductance Range: 0.56μH~5.6μH

Temperature Range:-40℃~+125℃

★Quantity / Reel: 500pcs

High current & low DCR, Quadrate10.0mm*10.2mm, Heigh 6.7mm Type.

★The use of carrier tape package for SMT reflow soldering process

★Widely use in DC-DC converter/LCD TV/Notebook/PDA/MP3 & MP4 player/Digital camera/DVD etc.

★Design to customer requirement.

Electrical Characteristics:

P&Z Part Number

Test Condition

Inductance  (μH)

Tolerance (%)

D.C.R(mΩ) Max.

Rated Current(A)

PDRA106-R56N

100Hz/0.3V

0.56

±30

3.50

12.00

PDRA106-1R0N

100Hz/0.3V

1.0

±30

4.60

10.00

PDRA106-1R5N

100Hz/0.3V

1.5

±30

8.50

9.70

PDRA106-1R6N

100Hz/0.3V

1.6

±30

9.50

9.50

PDRA106-2R2M

100Hz/0.3V

2.2

±20

13.00

7.50

PDRA106-2R4M

100Hz/0.3V

2.4

±20

15.20

7.00

PDRA106-3R3M

100Hz/0.3V

3.3

±20

16.80

7.00

PDRA106-4R3M

100Hz/0.3V

4.3

±20

18.20

6.50

PDRA106-4R7M

100Hz/0.3V

4.7

±20

19.20

6.50

PDRA106-5R6M

100Hz/0.3V

5.6

±20

21.00

6.00

1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value
or the temperature rise is △T=40℃ ,whichever is smaller(Ta=20℃).
