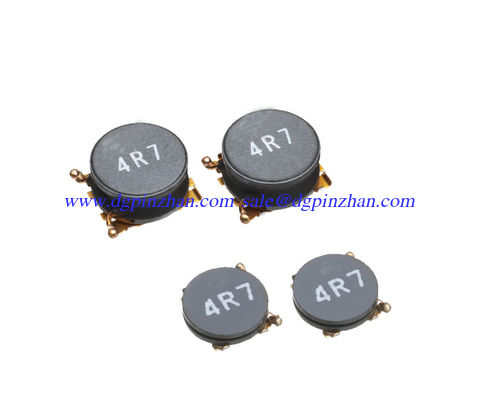

 PDH2515 Series2.2μH~47μH Low resistance, competitive price, high quality SMD power inductors

PDH2515 Series SMD Power Inductors

Inductance Range: 1.0μH~10μH

Temperature Range:-40℃~+125℃

★Quantity / Reel: 4000pcs

★Small products, Quadrate2.4mm*2.5mm Max, Height 1.40mm Type

★The use of carrier tape package for SMT reflow soldering process

★Widely use in DC-DC converter/LCD TV/Notebook/

    PDA/MP3 & MP4 player/Digital camera/DVD etc.

★Design to customer requirement

Part Number

Test Condition

Inductance  (μH)

Tolerance (%)

D.C.R(mΩ) Max.

Isat1(A)
@L-Drop10%
(Max.)

Isat2(A)
@L-Drop35%
(Max.)

I rms(A)
@△T=40℃(Max.)

PDH2515-1R0M

100KHz/0.1V

1.0

±20

89

2.33

2.75

1.52

PDH2515-1R5M

100KHz/0.1V

1.5

±20

115

2.16

2.33

1.44

PDH2515-2R2M

100KHz/0.1V

2.2

±20

168

1.75

1.88

1.08

PDH2515-3R3M

100KHz/0.1V

3.3

±20

254

1.40

1.54

0.88

PDH2515-4R7M

100KHz/0.1V

4.7

±20

298

1.20

1.30

0.84

PDH2515-5R6M

100KHz/0.1V

5.6

±20

408

1.08

1.20

0.68

PDH2515-6R8M

100KHz/0.1V

6.8

±20

556

0.95

1.04

0.60

PDH2515-8R2M

100KHz/0.1V

8.2

±20

593

0.85

0.96

0.56

PDH2515-100M

100KHz/0.1V

10

±20

676

0.79

0.92

0.55

1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.

2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.

3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value or the temperature rise is △T=40℃ ,whichever is smaller(Ta=20℃).

Acceptable customers design cust
