PDRP106 Series 3.5μH~680μH Elliptical low resistance high quality competitive price shielded SMD power inductor
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

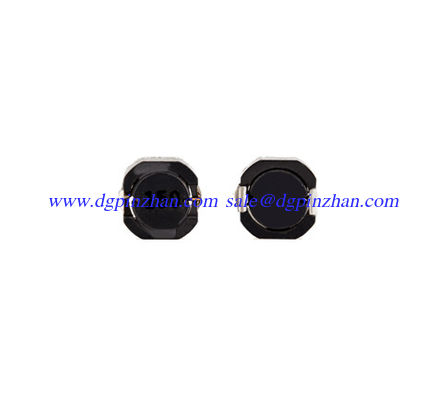

PDRP106 Series SMD Power Inductors
Inductance Range: 3.5μH~680μH
Temperature Range:－40℃～＋125℃
★Quantity / Reel: 500pcs
★Small products, Round 10.5 mm, Height 6.8 Type
★The use of carrier tape package for SMT reflow soldering process
★Widely use in DC-DC converter/LCD TV/Notebook/
PDA/MP3 & MP4 player/Digital camera/DVD etc.
★Design to customer requirement
|
P&Z Part Number |
Test Condition |
Inductance (μH) |
Tolerance (%) |
D.C.R(Ω) Max. |
Rated Current(A) |
|
PDRP106-3R5M,N |
100KHz/0.1V |
3.5 |
±20,±30 |
22m |
5.60 |
|
PDRP106-4R7M,N |
100KHz/0.1V |
4.7 |
±20,±30 |
24m |
5.20 |
|
PDRP106-6R0M,N |
100KHz/0.1V |
6.0 |
±20,±30 |
26m |
4.80 |
|
PDRP106-7R5M,N |
100KHz/0.1V |
7.5 |
±20,±30 |
30m |
4.20 |
|
PDRP106-100M |
100KHz/0.1V |
10 |
±20 |
35m |
4.00 |
|
PDRP106-120M |
100KHz/0.1V |
12 |
±20 |
40m |
3.50 |
|
PDRP106-150M |
100KHz/0.1V |
15 |
±20 |
50m |
3.20 |
|
PDRP106-180M |
100KHz/0.1V |
18 |
±20 |
60m |
3.00 |
|
PDRP106-220M |
100KHz/0.1V |
22 |
±20 |
65m |
2.60 |
|
PDRP106-270M |
100KHz/0.1V |
27 |
±20 |
75m |
2.20 |
|
PDRP106-330M |
100KHz/0.1V |
33 |
±20 |
95m |
2.00 |
|
PDRP106-390M |
100KHz/0.1V |
39 |
±20 |
0.110 |
1.90 |
|
PDRP106-470M |
100KHz/0.1V |
47 |
±20 |
0.135 |
1.80 |
|
PDRP106-560M |
100KHz/0.1V |
56 |
±20 |
0.145 |
1.70 |
|
PDRP106-680M |
100KHz/0.1V |
68 |
±20 |
0.155 |
1.60 |
|
PDRP106-820M |
100KHz/0.1V |
82 |
±20 |
0.185 |
1.50 |
|
PDRP106-101M |
100KHz/0.1V |
100 |
±20 |
0.220 |
1.40 |
|
PDRP106-121M |
100KHz/0.1V |
120 |
±20 |
0.255 |
1.30 |
|
PDRP106-151M |
100KHz/0.1V |
150 |
±20 |
0.280 |
1.10 |
|
PDRP106-181M |
100KHz/0.1V |
180 |
±20 |
0.350 |
1.00 |
|
PDRP106-221M |
100KHz/0.1V |
220 |
±20 |
0.460 |
0.85 |
|
PDRP106-271M |
100KHz/0.1V |
270 |
±20 |
0.600 |
0.70 |
|
PDRP106-331M |
100KHz/0.1V |
330 |
±20 |
0.700 |
0.60 |
|
PDRP106-391M |
100KHz/0.1V |
390 |
±20 |
0.860 |
0.55 |
|
PDRP106-471M |
100KHz/0.1V |
470 |
±20 |
1.100 |
0.53 |
|
PDRP106-561M |
100KHz/0.1V |
560 |
±20 |
1.250 |
0.50 |
|
PDRP106-681M |
100KHz/0.1V |
680 |
±20 |
1.500 |
0.47 |
1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).
