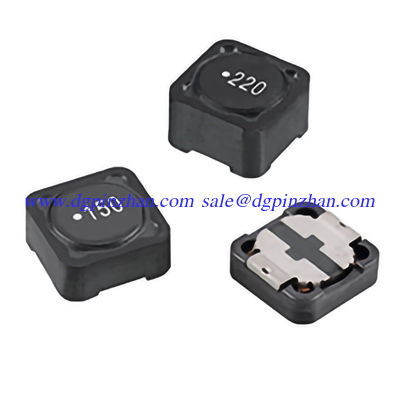

Large Image :  PDRH1508 Series 1.0μH~2200μH low resistance, competitive price, high quality elliptical SMD power inductor

Product Details:

Place of Origin: Dongguan, China
Brand Name: P&Z
Certification: ISO9001:2015
Model Number: PDRH1508 Series

Payment & Shipping Terms:

Minimum Order Quantity: 1Reel
Price: To be confirmed
Packaging Details: Reel+Carton
Delivery Time: around 3-4 Weeks
Payment Terms: T / T in advance
Supply Ability: 500K
Contact Now
Detailed Product Description

PDRH1508 Series 1.0μH~2200μH low resistance, competitive price, high quality elliptical SMD power inductor

PDRH1508 Series 1.0μH~2200μH low resistance, competitive price, high quality elliptical SMD power inductor

Dimensions: [mm]

PDRH1508 Series 1.0μH~2200μH low resistance, competitive price, high quality elliptical SMD power inductor



Features:



Inductance Range: 1.0μH~2200μH

Temperature Range:-40℃~+125℃

★Quantity / Reel:500pcs

Small products, Quadrate15.5mm*15.5mm, Heigh8.0mm Type.

★The use of carrier tape package for SMT reflow soldering process

★Widely use in DC-DC converter/LCD TV/Notebook/PDA/MP3 & MP4 player/Digital camera/DVD etc.

★Design to customer requirement.

Electrical Characteristics



Part Code Inductance Test conditions DC-Resistance Isat≤30% Irms
ΔT=40℃
PDRH1508-1R0M 1.0uH ±20% 100KHZ/0.1V 5mΩ Max 40A Max 22.5A Max
PDRH1508-2R2M 2.2uH ±20% 100KHZ/0.1V 7mΩ Max 26A Max 17.5A Max
PDRH1508-3R3M 3.3uH ±20% 100KHZ/0.1V 8mΩ Max 22A Max 14.0A Max
PDRH1508-4R7M 4.7uH ±20% 100KHZ/0.1V 11mΩ Max 18A Max 12.0A Max
PDRH1508-6R8M 6.8uH ±20% 100KHZ/0.1V 12mΩ Max 15A Max 12.0A Max
PDRH1508-100M 10uH ±20% 100KHZ/0.1V 17mΩ Max 13A Max 11.0A Max
PDRH1508-150M 15uH ±20% 100KHZ/0.1V 25mΩ Max 10A Max 9.8A Max
PDRH1508-220M 22uH ±20% 100KHZ/0.1V 36mΩ Max 8.6A Max 7.3A Max
PDRH1508-330M 33uH ±20% 100KHZ/0.1V 58mΩ Max 7.0A Max 6.0A Max
PDRH1508-470M 47uH ±20% 100KHZ/0.1V 91mΩ Max 5.6A Max 4.8A Max
PDRH1508-680M 68uH ±20% 100KHZ/0.1V 113mΩ Max 5.0A Max 4.6A Max
PDRH1508-101M 100uH ±20% 100KHZ/0.1V 187mΩ Max 4.0A Max 3.6A Max
PDRH1508-221M 220uH ±20% 100KHZ/0.1V 370mΩ Max 2.5A Max 2.4A Max
PDRH1508-222M 2200uH ±20% 100KHZ/0.1V 4500mΩ Max 0.9A Max 0.65A Max

1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value
or the temperature rise is △T=40℃ ,whichever is smaller(Ta=20℃).
