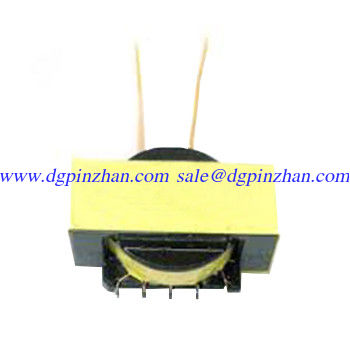

PZ-ER2010 850uH vertical high frequency Applied to LED drive power Double winding primary sandwich winding

PZ-ER2010 850uH vertical high frequency Applied to LED drive power Double winding primary sandwich winding

China PZ-ER2010 850uH vertical high frequency Applied to LED drive power Double winding primary sandwich winding supplier
PZ-ER2010 850uH vertical high frequency Applied to LED drive power Double winding primary sandwich winding supplier PZ-ER2010 850uH vertical high frequency Applied to LED drive power Double winding primary sandwich winding supplier PZ-ER2010 850uH vertical high frequency Applied to LED drive power Double winding primary sandwich winding supplier PZ-ER2010 850uH vertical high frequency Applied to LED drive power Double winding primary sandwich winding supplier PZ-ER2010 850uH vertical high frequency Applied to LED drive power Double winding primary sandwich winding supplier

Large Image :  PZ-ER2010 850uH vertical high frequency Applied to LED drive power Double winding primary sandwich winding

Product Details:

Place of Origin: Dongguan, China
Brand Name: P&Z
Certification: ISO9001:2015
Model Number: PZ-ER2010V-851K

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: To be confirmed
Packaging Details: Blister + Carton
Delivery Time: around 3-4 Weeks
Payment Terms: T / T in advance
Supply Ability: 100K
Contact Now
Detailed Product Description
Core Material: 40 Dimensions: [mm: 23*19*11
Installation Method: Vertical Flying Wire Length: 45mm

 ER2010 850uH vertical high frequency transformer






PZ-ER2010 850uH vertical high frequency Applied to LED drive power Double winding primary sandwich winding

PZ-ER2010 850uH vertical high frequency Applied to LED drive power Double winding primary sandwich winding

PZ-ER2010 850uH vertical high frequency Applied to LED drive power Double winding primary sandwich winding





Dimensions: [mm]

PZ-ER2010 850uH vertical high frequency Applied to LED drive power Double winding primary sandwich winding



Characteristics

  • Through-Hole
  • Core Direction: Vertical and Horizontal
  • Functional & Reinforced Insulation

Applications

  • Offline
  • Lighting
  • DC/DC Converter
  • Industrial Controls
  • White Goods
  • Telecom
  • PFC
  • Charging
  • Stand-by Power

Electrical characteristics:



Properties Test conditions Value Unit Tolerance
Inductance:1-5 1KHZ/0.3V 0.85 mH ±10%
Turns ratio: N2:N1 0.22:1   ±1%
Turns ratio: N3:N1 0.63:1   ±1%
Turns ratio: N4:N1 0.63:1   ±1%
Hi-pot:Pri-Sec AC3000V/3mA/3S V/(AC) Pass
Hi-pot:Pri/Sec-Core AC1000V/3mA/3S V/(AC) Pass

Acceptable customers design custom
