Home ProductsAxial Inductor/Air coil

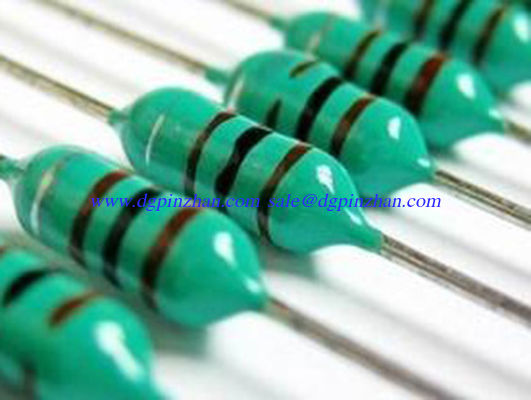

Axial Color ring inductors PZ-AL0410-Series 0/1uH~1000uH

Axial Color ring inductors PZ-AL0410-Series 0/1uH~1000uH

China Axial Color ring inductors PZ-AL0410-Series 0/1uH~1000uH supplier
Axial Color ring inductors PZ-AL0410-Series 0/1uH~1000uH supplier Axial Color ring inductors PZ-AL0410-Series 0/1uH~1000uH supplier Axial Color ring inductors PZ-AL0410-Series 0/1uH~1000uH supplier Axial Color ring inductors PZ-AL0410-Series 0/1uH~1000uH supplier

Large Image :  Axial Color ring inductors PZ-AL0410-Series 0/1uH~1000uH

Product Details:

Place of Origin: Dongguan, China
Brand Name: P&Z
Certification: ISO9001:2015
Model Number: PZA-L0410-Seres

Payment & Shipping Terms:

Minimum Order Quantity: 10000PCS
Price: To be confirmed
Packaging Details: Taping
Delivery Time: around 3-4 Weeks
Payment Terms: T / T in advance
Supply Ability: 10kK
Contact Now
Detailed Product Description

Axial Color ring inductors PZ-AL0410-Series 0/1uH~1000uH
Dimensions (mm):W4.0*L10.0

Inductance Range(uH):0.1~1000

DCR Range(Ω):0.06~20

Heat RatingCurrent DC Idc (mA):85~1700
Dimensions & color-coded:
Axial Color ring inductors PZ-AL0410-Series 0/1uH~1000uH

Features:
  *Design to be compact, small and light-weight
  *Wide range of inductance
  *Contribute to be high Q and self-resonant frequencies
  *Tapping type that is convenient for automatic insertion
  *Coating epoxy resin that ensure the humidity resistance to be long life
  *Low Cost
Applications:
  *Electronics products
  *Communications equpments
  *Computer Devices
  *TV, VCR
  *Battery charger
Product Identification:
 PAL 0410 -102-K
    1    2       3   4
 1.Product Code
 2.Core Dimensions
 3.Inductance Code
 4.Tolerance Code
Part No. & Dimensions Line:
            Axial Color ring inductors PZ-AL0410-Series 0/1uH~1000uH
ex:
 If nominal inductance & tolerance is 22mH, ±10% respectively red+red+orange+silver should be marked;
 If nominal inductance & tolerance is 18uH,±10% respectively brown+gray+black+silver should be marked;
 If nominal inductance & tolerance is 0.39uH, ±20 respectively orange+white+silver+black should be marked.
General Specification:
   Temp. rise:20℃ max
   Ambient temp. :60℃ max
   Operating temp. :-20℃~+80℃
   Terminal tensile strength:1.0kg min
   Terminal bending strength:0.3kg min
   Dielectric withstanding voltage:250Vrms
   Rated current:base on temp rise
