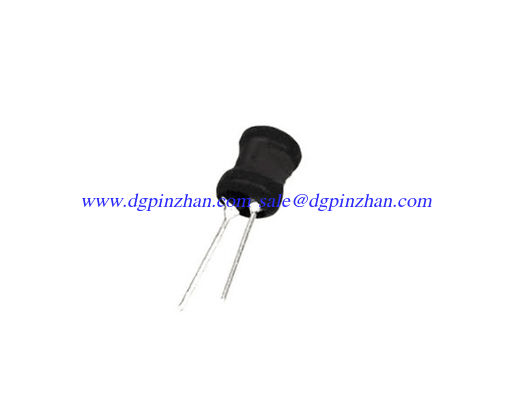

PDL-1216-Series 22~1000uH Low cost, competitive price, high current Nickel-zinc Drum core inductor

PDL-1216-Series 22~1000uH Low cost, competitive price, high current Nickel-zinc Drum core inductor

China PDL-1216-Series 22~1000uH  Low cost, competitive price, high current Nickel-zinc Drum core inductor supplier
PDL-1216-Series 22~1000uH  Low cost, competitive price, high current Nickel-zinc Drum core inductor supplier PDL-1216-Series 22~1000uH  Low cost, competitive price, high current Nickel-zinc Drum core inductor supplier PDL-1216-Series 22~1000uH  Low cost, competitive price, high current Nickel-zinc Drum core inductor supplier PDL-1216-Series 22~1000uH  Low cost, competitive price, high current Nickel-zinc Drum core inductor supplier

Large Image :  PDL-1216-Series 22~1000uH Low cost, competitive price, high current Nickel-zinc Drum core inductor

Product Details:

Place of Origin: Dongguan, China
Brand Name: P&Z
Certification: ISO9001:2015
Model Number: PDL-1216-Series

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: To be confirmed
Packaging Details: Plastic belt + Carton
Delivery Time: around 3-4 Weeks
Payment Terms: T / T in advance
Supply Ability: 1000k
Contact Now
Detailed Product Description

PDL-1216-Series 22~1000uH  Low cost, competitive price, high current Nickel-zinc Drum core inductor

PDL1216 Series DIP DR TYPE inductor

DInductance Range: 10μH~4000μH

Dimensions: 14* 18 (mm)

Applications: choke, filter inductors, inductor, EMI differential mode inductors, boost inductor, inductance oscillation, RF radio frequency.

Part Number Inductance (μH) Tolerance(%) Test Condition D.C.R(Ω) Max. Rated Current(A)
PDL1216-100□ 10 K,M 10KHZ/0.25V 19m 10.0
PDL1216-120□ 12 K,M 10KHZ/0.25V 23m 8.8
PDL1216-150□ 15 K,M 10KHZ/0.25V 27m 8.5
PDL1216-220□ 22 K,M 10KHZ/0.25V 29m 7.0
PDL1216-101□ 100 K,M 10KHZ/0.25V 0.15 2.4
PDL1216-221□ 220 K,M 10KHZ/0.25V 0.31 1.60
PDL1216-271□ 270 K,M 10KHZ/0.25V 0.40 1.45
PDL1216-331□ 330 K,M 10KHZ/0.25V 0.46 1/30
PDL1216-391□ 390 K,M 10KHZ/0.25V 0.58 1.15
PDL1216-471□ 470 K,M 10KHZ/0.25V 0.70 1.10
PDL1216-501□ 500 K,M 10KHZ/0.25V 0.75 0.95
PDL1216-681□ 680 K,M 10KHZ/0.25V 0.80 0.90
PDL1216-821□ 820 K,M 10KHZ/0.25V 0.85 0.85
PDL1216-102□ 1000 K,M 10KHZ/0.25V 0.90 0.75
PDL1216-302□ 3000 K,M 10KHZ/0.25V 2.79 0.53
PDL1216-332□ 3300 K,M 10KHZ/0.25V 2.89 0.52
PDL1216-402□ 4000 K,M 10KHZ/0.25V 3.73 0.49
