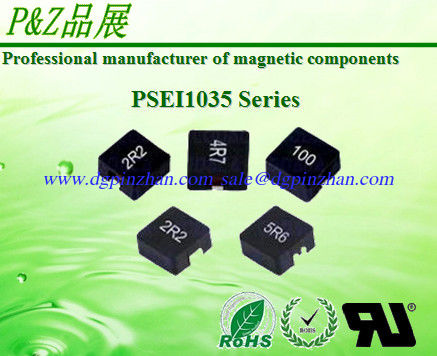

PSEI1035 Series 0.33~3.3uH Iron core Flat wire SMD High Current Inductors

PSEI1035 Series 0.33~3.3uH Iron core Flat wire SMD High Current Inductors

China PSEI1035 Series 0.33~3.3uH Iron core Flat wire SMD High Current Inductors supplier
PSEI1035 Series 0.33~3.3uH Iron core Flat wire SMD High Current Inductors supplier PSEI1035 Series 0.33~3.3uH Iron core Flat wire SMD High Current Inductors supplier

Large Image :  PSEI1035 Series 0.33~3.3uH Iron core Flat wire SMD High Current Inductors

Product Details:

Place of Origin: Dongguan, China
Brand Name: P&Z
Certification: ISO9001:2015
Model Number: PSEI1035 Series

Payment & Shipping Terms:

Minimum Order Quantity: 2000PCS
Price: To be confirmed
Packaging Details: Reel+Carton
Delivery Time: around 3-4 Weeks
Payment Terms: T / T in advance
Supply Ability: 100K
Contact Now
Detailed Product Description

PSEI1035 Series 0.33~3.3uH Iron core Flat wire SMD High Current InductorsPSEI1035 Series 0.33~3.3uH Iron core Flat wire SMD High Current Inductors

PSEI1035 Series 0.33~3.3uH Iron core Flat wire SMD High Current Inductors



PSEI1035 Series Iron core SMD High Current Inductors

Dimensions (mm): 10.5 x11.0 x3.5
Inductance Range (uH): 0.33 ~ 3.3
DCR Range (mΩ): 2.0 ~ 25.0
Heat RatingCurrent DC Idc (A): 7.0 ~ 16.0
Saturation Current DC Isat (A): 11.0 ~ 20.0
Feature:
1. Magnetically shield construction, anti-electromagnetic interference, ultra low buzz noise, high density installation.
2. Low magnetic loss, low DC resistance, highest curent in this package size.
3. Assembled solide structure.
4. Low profile, high current, temperature rise current and saturation current performed well under high frequency&high         temperature condition.
5. Fast paint stripping craft, PIN finished smoothly, no distortion, easy to solder.
Application:
    Widly used in industrial control PCs, PDA, notebook, desktop, server, cell phone, automotive, DC/DC converter, LED lighting, communication equipment, medical quipment, nevigation.
Electrical Specifications:
Part No Test frequency Inductance   L(uH)±30% DCR(mΩ)Max Heat Rated Current(A)Max            Saturation              Current(A)Max
PSEI1035-R33M 100KHZ/0.25V 0.33 2.0 16.0 20.0
PSEI1035-R60M 100KHZ/0.25V 0.60 3.5 14.0 18.0
PSEI1035-1R0M 100KHZ/0.25V 1.0 5.5 12.0 16.0
PSEI1035-1R5M 100KHZ/0.25V 1.5 8.0 10.0 14.0
PSEI1035-2R0M 100KHZ/0.25V 2.0 12.0 9.0 13.0
PSEI1035-2R7M 100KHZ/0.25V 2.7 18.0 8.0 12.0
PSEI1035-3R3M 100KHZ/0.25V 3.3 25.0 7.0 11.0
