Shape: Square Size: 17.5*17.2*7.0
Packing Quantity: 500PCS/Reel Material: Iron Alloy

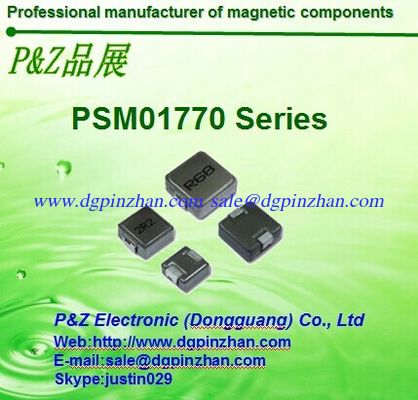

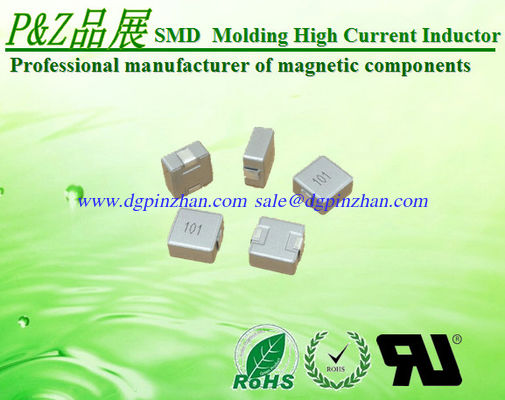

PSM1770 Series 1.5~68uH Iron alloy Molding SMD High Current Inductors Chokes Square Size

PSM1770 Series SMD High Current Inductors

Dimensions (mm):17.15 x 17.5 x 7.0

Inductance Range(uH):1.5 ~ 68

DCR Range(mΩ):1.85 ~ 85

Heat RatingCurrent DC Idc (A):5.2 ~ 35.0

Saturation Current DC Isat (A):6.5 ~ 40.0

Features:
High performance (Isat) realized by metal dust core.
Low profile:Thickness max.7.0 mm
Low loss realized with low DCR Capable of corresponding high frequency (1MHz)
Design to customer requirement
Application:
DC/DC converter for CPU in Notebook PC
Thin type on-board power supply module for exchangerVRM for server.

P&Z Part Number

L0 @ (0A)

Inductance

( μH ) ±20%

DCR(mΩ)

Heat Rating Current

DC Amps. Idc ( A )

Saturation Current

DC Amps. Isat ( A )

Typical

Maximum

Typical

Typical

PSM1770-1R5M

1.5

1.85

2.15

40

40

PSM1770-2R2M

2.2

2.15

2.5

37

34

PSM1770-4R7M

4.7

4.12

4.72

27

24

PSM1770-6R8M

6.8

6.55

7.55

20

22

PSM1770-8R2M

8.2

8.1

8.7

16

20

PSM1770-100M

10

9.3

10

14

18

PSM1770-150M

15

14.5

15.5

12

13

PSM1770-200M

20

19.5

21.9

9.7

12

PSM1770-220M

22

20.5

23

9.5

11

PSM1770-330M

33

35.1

37

9

10

PSM1770-470M

47

41

47

6.8

7.5

PSM1770-680M

68

74

85

5.2

6.5



Packaging Information:

PSM1770 Series 1.5~68uH Iron alloy Molding SMD High Current Inductors Chokes Square Size
