Home ProductsToroid Common mode choke

PTBL4444 Series For Toroidal common mode choke High current, low resistance for eliminating circuit EMC/EMI

PTBL4444 Series For Toroidal common mode choke High current, low resistance for eliminating circuit EMC/EMI

China PTBL4444 Series For Toroidal common mode choke High current, low resistance for eliminating circuit EMC/EMI supplier
PTBL4444 Series For Toroidal common mode choke High current, low resistance for eliminating circuit EMC/EMI supplier PTBL4444 Series For Toroidal common mode choke High current, low resistance for eliminating circuit EMC/EMI supplier PTBL4444 Series For Toroidal common mode choke High current, low resistance for eliminating circuit EMC/EMI supplier PTBL4444 Series For Toroidal common mode choke High current, low resistance for eliminating circuit EMC/EMI supplier PTBL4444 Series For Toroidal common mode choke High current, low resistance for eliminating circuit EMC/EMI supplier

Large Image :  PTBL4444 Series For Toroidal common mode choke High current, low resistance for eliminating circuit EMC/EMI

Product Details:

Place of Origin: Dongguan, China
Brand Name: P&Z
Certification: ISO9001:2015
Model Number: PTBL4444 Series

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Price: To be confirmed
Packaging Details: EPE + Carton or plastic + Carton
Delivery Time: around 3-4 Weeks
Payment Terms: T / T in advance
Supply Ability: 120k/Month
Contact Now
Detailed Product Description

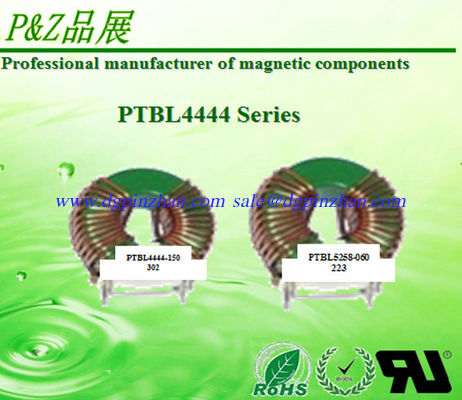

PTBL4444 Series For Toroidal common mode choke High current, low resistance for eliminating circuit EMC/EMI

PTBL4444 Series For Toroidal common mode choke High current, low resistance for eliminating circuit EMC/EMI

PTBL4444 Series For Toroidal common mode choke

Temperature Range:-40℃~+125℃

Dimensions (mm):44.5 x22.5 x 44.7

Inductance Range(mH): 3.0 ~ 56

DCR Range(Ω):0.09~ 1.0

RatingCurrent DC Idc (A):1.8 ~ 15

Features:
Low loss.
Dielectric strength:1500V.                                                                                                                                     Fixed pin spacing allow easy PCB insertion.
Custom Designs Available.

Application:
DC/DC,AC/AC line noise suppression
Automotive System.
Communication System.

Part Number Inductance(mH )Min Test frequency Rated Current(A) DCR(Ω)Max
PTBL4444-150-302 3 1KHZ/0.25V 15 0.009
PTBL4444-120-502 5 1KHZ/0.25V 12 0.035
PTBL4444-068-123 12 1KHZ/0.25V 6.8 0.098
PTBL4444-042-153 15 1KHZ/0.25V 4.2 0.132
PTBL4444-032-223 22 1KHZ/0.25V 3.2 0.352
PTBL4444-020-333 33 1KHZ/0.25V 2 0.73
PTBL4444-018-563 56 1KHZ/0.25V 1.8 1.00

Notes:
1.Wire:130°C or150°C.
2.Core Material: Mn-Zn ferrite.
3.The above specifications for the common specifications, customers can request custom design.

Acceptable customers design cust
