PTBL3126 Series For Toroidal common mode choke

PTBL3126 Series For Toroidal common mode choke

China PTBL3126 Series For Toroidal common mode choke supplier
PTBL3126 Series For Toroidal common mode choke supplier PTBL3126 Series For Toroidal common mode choke supplier PTBL3126 Series For Toroidal common mode choke supplier PTBL3126 Series For Toroidal common mode choke supplier PTBL3126 Series For Toroidal common mode choke supplier

Large Image :  PTBL3126 Series For Toroidal common mode choke

Product Details:

Place of Origin: Dongguan, China
Brand Name: P&Z
Certification: ISO9001:2015
Model Number: PTBL3126 Series

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Price: To be confirmed
Packaging Details: EPE + Carton or plastic + Carton
Delivery Time: around 3-4 Weeks
Payment Terms: T / T in advance
Supply Ability: 120k/Month
Contact Now
Detailed Product Description

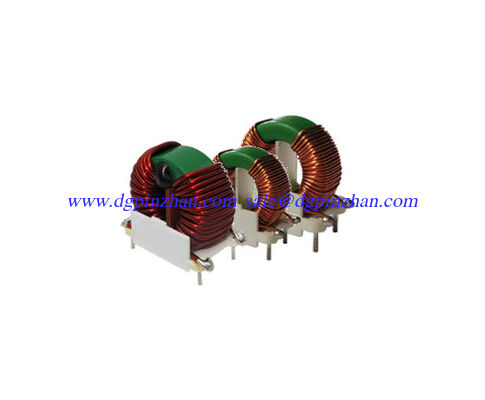

PTBL3126 Series For Toroidal common mode choke

PTBL3126 Series For Toroidal common mode choke

PTBL3126 Series For Toroidal common mode choke

Temperature Range:-40℃~+125℃

Dimensions (mm):31.5 x 16.0 x 26.5

Inductance Range(mH):1.0 ~ 16

DCR Range(Ω):0.01~ 0.32

RatingCurrent DC Idc (A):1.5 ~ 15

Features:
Low loss.
Dielectric strength:1500V.                                                                                                                                         Fixed pin spacing allow easy PCB insertion.
Custom Designs Available.

Application:
DC/DC,AC/AC line noise suppression
Automotive System.
Communication System.
Part Number Inductance(mH )Min Test frequency Rated Current(A) DCR(Ω)Max
PTBL3126-150-102 1 1KHZ/0.25V 15 0.01
PTBL3126-090-202 2 1KHZ/0.25V 9 0.02
PTBL3126-060-302 3 1KHZ/0.25V 6 0.03
PTBL3126-035-402 4 1KHZ/0.25V 3.5 0.04
PTBL3126-025-802 8 1KHZ/0.25V 2.5 0.12
PTBL3126-022-103 10 1KHZ/0.25V 2.2 0.24
PTBL3126-015-163 16 1KHZ/0.25V 1.5 0.32

Notes:
1.Wire:130°C or150°C.
2.Core Material: Mn-Zn ferrite.
3.The above specifications for the common specifications, customers can request custom design.

Acceptable customers design cust
