PDRH129 Series 1.5uH~100uH Nickel core material Square High quality competitive shielded SMD Power Inductors

Large Image : PDRH129 Series 1.5uH~100uH Nickel core material Square High quality competitive shielded SMD Power Inductors

Product Details:

Place of Origin:	Dongguan, China
Brand Name:	P&Z
Certification:	ISO9001:2015
Model Number:	PDRH129 Series SMD Power Inductors

Payment & Shipping Terms:

Minimum Order Quantity:	1Reel
Price:	To be confirmed
Packaging Details:	Reel+Carton
Delivery Time:	around 3-4 Weeks
Payment Terms:	T / T in advance
Supply Ability:	1000k

Contact Now

Detailed Product Description

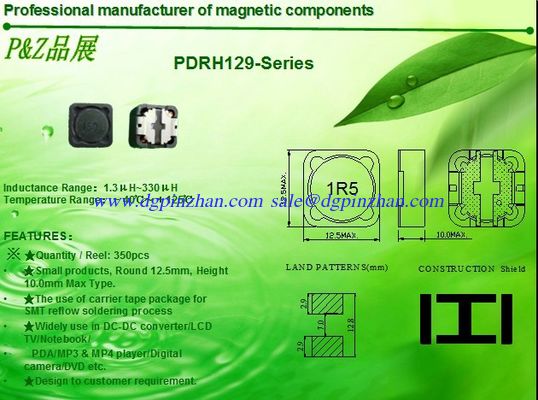

PDRH129 Series SMD Power Inductors

Features:

Inductance Range: 1.5μH~100μH

Temperature Range:－40℃～＋125℃

★Quantity / Reel: 350pcs

★High current & low DCR, Quadrate12.5mm Max, Height 10.0mm Max.

★The use of carrier tape package for SMT reflow soldering process

★Widely use in DC-DC converter/LCD TV/Notebook/PDA/MP3 & MP4 player/Digital camera/DVD etc.

★Design to customer requirement.

Electrical Characteristics:

P&Z Part Number	Test Condition	Inductance (μH)	Tolerance (%)	D.C.R(mΩ) Max.	Rated Current(A)
PDRH129-1R5M,N	100KHz/0.3V	1.5	±20,±30	5.0	15.10
PDRH129-2R2M,N	100KHz/0.3V	2.2	±20,±30	6.0	13.20
PDRH129-3R3M,N	100KHz/0.3V	3.3	±20,±30	7.0	11.90
PDRH129-4R7M,N	100KHz/0.3V	4.7	±20,±30	8.0	10.80
PDRH129-5R6M,N	100KHz/0.3V	5.6	±20,±30	10.0	9.60
PDRH129-6R8M,N	100KHz/0.3V	6.8	±20,±30	12.0	8.70
PDRH129-100M	1KHz/0.3V	10	±20	17.0	8.00
PDRH129-150M	1KHz/0.3V	15	±20	28.0	7.00
PDRH129-220M	1KHz/0.3V	22	±20	32.0	5.60
PDRH129-330M	1KHz/0.3V	33	±20	51.0	4.80
PDRH129-470M	1KHz/0.3V	47	±20	78.0	3.90
PDRH129-680M	1KHz/0.3V	68	±20	105.0	2.70
PDRH129-101M	1KHz/0.3V	100	±20	150.0	2.10

1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value or the temperature rise is △T＝40℃ ,whichever is smaller(Ta＝20℃).
