PDS2515 Series 1.0uH~270uH Square Unshielded SMD Power Inductors

PDS2515 Series 1.0uH~270uH Square Unshielded SMD Power Inductors

China PDS2515 Series 1.0uH~270uH Square Unshielded SMD Power Inductors supplier
PDS2515 Series 1.0uH~270uH Square Unshielded SMD Power Inductors supplier PDS2515 Series 1.0uH~270uH Square Unshielded SMD Power Inductors supplier PDS2515 Series 1.0uH~270uH Square Unshielded SMD Power Inductors supplier PDS2515 Series 1.0uH~270uH Square Unshielded SMD Power Inductors supplier PDS2515 Series 1.0uH~270uH Square Unshielded SMD Power Inductors supplier

Large Image :  PDS2515 Series 1.0uH~270uH Square Unshielded SMD Power Inductors

Product Details:

Place of Origin: Dongguan, China
Brand Name: P&Z
Certification: ISO9001:2015
Model Number: PDS2515 Series

Payment & Shipping Terms:

Minimum Order Quantity: 1Reel
Price: To be confirmed
Packaging Details: Reel+Carton
Delivery Time: around 3-4 Weeks
Payment Terms: T / T in advance
Supply Ability: 1000K
Detailed Product Description

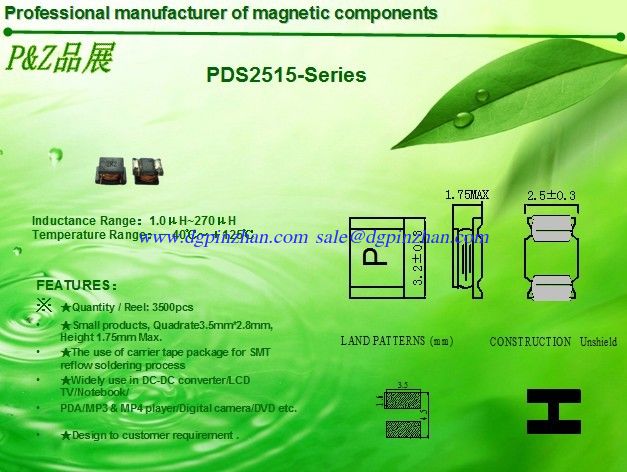

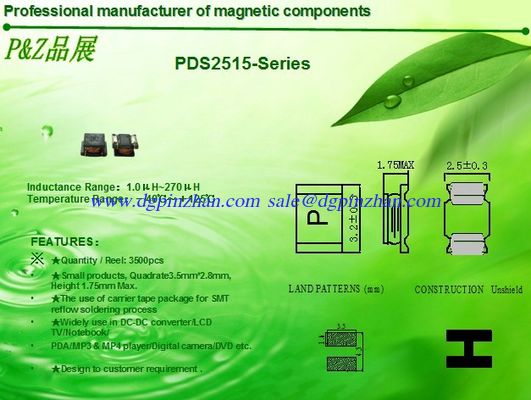

PDS2515 Series 1.0uH~270uH Square Unshielded SMD Power Inductors

PDS2515 Series SMD Power Inductors

Inductance Range: 1.0μH~270μH

Temperature Range:-40℃~+125℃

★Quantity / Reel: 3500pcs

★Small products, Quadrate3.5mm*2.8mm, Height 1.75mm Max.

★The use of carrier tape package for SMT reflow soldering process

★Widely use in DC-DC converter/LCD TV/Notebook/

    PDA/MP3 & MP4 player/Digital camera/DVD etc.

★Design to customer requirement

P&Z Part Number

Test Condition

Inductance  (μH)

Tolerance (%)

D.C.R(Ω) Max.

Rated Current(A)

PDS2515-1R0M

100KHz/0.3V

1.0

±20

0.060

1.48

PDS2515-1R4M

100KHz/0.3V

1.4

±20

0.079

1.38

PDS2515-1R8M

100KHz/0.3V

1.8

±20

0.101

1.31

PDS2515-2R2M

100KHz/0.3V

2.2

±20

0.125

1.25

PDS2515-3R3M

100KHz/0.3V

3.3

±20

0.160

1.08

PDS2515-4R7M

100KHz/0.3V

4.7

±20

0.236

0.98

PDS2515-5R6M

100KHz/0.3V

5.6

±20

0.287

0.90

PDS2515-6R8M

100KHz/0.3V

6.8

±20

0.371

0.79

PDS2515-8R2M

100KHz/0.3V

8.2

±20

0.471

0.72

PDS2515-100K,M

1KHz/0.3V

10

±10,±20

0.576

0.66

PDS2515-120K,M

1KHz/0.3V

12

±10,±20

0.684

0.59

PDS2515-150K,M

1KHz/0.3V

15

±10,±20

0.888

0.54

PDS2515-180K,M

1KHz/0.3V

18

±10,±20

1.087

0.48

PDS2515-220K,M

1KHz/0.3V

22

±10,±20

1.343

0.43

PDS2515-330K,M

1KHz/0.3V

33

±10,±20

2.245

0.35

PDS2515-470K,M

1KHz/0.3V

47

±10,±20

3.064

0.29

PDS2515-560K,M

1KHz/0.3V

56

±10,±20

4.120

0.27

PDS2515-680K,M

1KHz/0.3V

68

±10,±20

5.289

0.24

PDS2515-820K,M

1KHz/0.3V

82

±10,±20

7.223

0.20

PDS2515-101K,M

1KHz/0.3V

100

±10,±20

8.209

0.19

PDS2515-121K,M

1KHz/0.3V

120

±10,±20

10.888

0.17

PDS2515-151K,M

1KHz/0.3V

150

±10,±20

12.568

0.16

PDS2515-181K,M

1KHz/0.3V

180

±10,±20

19.645

0.14

PDS2515-221K,M

1KHz/0.3V

220

±10,±20

22.307

0.13

PDS2515-271K,M

1KHz/0.3V

270

±10,±20

24.613

0.12

 1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value
or the temperature rise is △T=40℃ ,whichever is smaller(Ta=20℃).
