PZ-PZ3230V-351K MID-PFC Inductors for Power Factor Correction for Lighting Applications for Alternative Wurth 750315797

PZ-PZ3230V-351K MID-PFC Inductors for Power Factor Correction for Lighting Applications for Alternative Wurth 750315797

China PZ-PZ3230V-351K MID-PFC Inductors for Power Factor Correction for Lighting Applications for Alternative Wurth 750315797 supplier
PZ-PZ3230V-351K MID-PFC Inductors for Power Factor Correction for Lighting Applications for Alternative Wurth 750315797 supplier PZ-PZ3230V-351K MID-PFC Inductors for Power Factor Correction for Lighting Applications for Alternative Wurth 750315797 supplier PZ-PZ3230V-351K MID-PFC Inductors for Power Factor Correction for Lighting Applications for Alternative Wurth 750315797 supplier PZ-PZ3230V-351K MID-PFC Inductors for Power Factor Correction for Lighting Applications for Alternative Wurth 750315797 supplier PZ-PZ3230V-351K MID-PFC Inductors for Power Factor Correction for Lighting Applications for Alternative Wurth 750315797 supplier

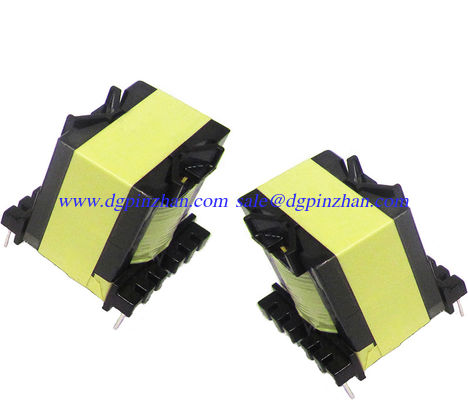

Large Image :  PZ-PZ3230V-351K MID-PFC Inductors for Power Factor Correction for Lighting Applications for Alternative Wurth 750315797

Product Details:

Place of Origin: Dongguan, China
Brand Name: P&Z Toroid
Certification: ISO9001:2015
Model Number: PZ-PQ3230VV-351M

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: To be confirmed
Packaging Details: Blister+Carton
Delivery Time: around 3-4 Weeks
Payment Terms: T/T
Supply Ability: 1KK
Contact Now
Detailed Product Description
Material: Mn-Zn Ferrite Dimension: 35.6*37.35*33
Installation Method: Vertical Through Hole



PZ-TBL10625V-521M Vertical through hole choke

PZ-PZ3230V-351K MID-PFC Inductors for Power Factor Correction for Lighting Applications for Alternative Wurth 750315797

PZ-PZ3230V-351K MID-PFC Inductors for Power Factor Correction for Lighting Applications for Alternative Wurth 750315797

PZ-PZ3230V-351K MID-PFC Inductors for Power Factor Correction for Lighting Applications for Alternative Wurth 750315797

Dimensions:

PZ-PZ3230V-351K MID-PFC Inductors for Power Factor Correction for Lighting Applications for Alternative Wurth 750315797











Properties Test conditions Value Unit Tolerance
Inductance:1.2.3-4.5.6 10KHZ/0.1V 350 uH ±10%
DC-resistance:1.2.3-4.5.6 @25 °C 300 Max
Turns:  N1 100 Ts ±1%
Hi-pot:Pri-Sec 37500VAC/3mA/3S50HZ V/(AC) Pass
Hi-pot:Pri/Ses To Core 1000VAC/3mA/3S/50HZ V/(AC) Pass

Characteristics

  • Inductance 125-2500µH
  • With or without auxiliary winding
  • Saturation current: Up to 15A
  • Rated for up to 250VAC basic applications
  • Operating temp: -40°C to +125°

Applications

  • Power Factor Correction

 can be customized according to customer requirements
