PDRH125D Series 1.5uH~100uH Square High quality competitive shielded SMD Power Inductors Replace Wurth744874 series

PDRH125D Series 1.5uH~100uH Square High quality competitive shielded SMD Power Inductors Replace Wurth744874 series

China PDRH125D Series 1.5uH~100uH Square High quality competitive shielded SMD Power Inductors Replace Wurth744874 series supplier
PDRH125D Series 1.5uH~100uH Square High quality competitive shielded SMD Power Inductors Replace Wurth744874 series supplier PDRH125D Series 1.5uH~100uH Square High quality competitive shielded SMD Power Inductors Replace Wurth744874 series supplier PDRH125D Series 1.5uH~100uH Square High quality competitive shielded SMD Power Inductors Replace Wurth744874 series supplier PDRH125D Series 1.5uH~100uH Square High quality competitive shielded SMD Power Inductors Replace Wurth744874 series supplier PDRH125D Series 1.5uH~100uH Square High quality competitive shielded SMD Power Inductors Replace Wurth744874 series supplier

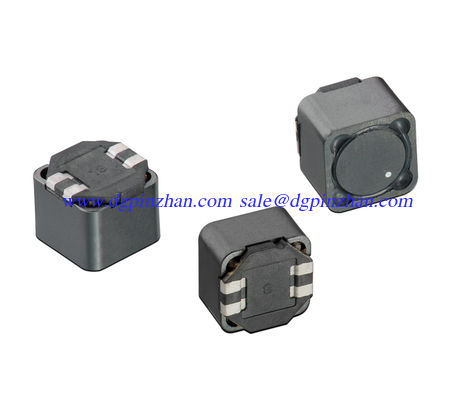

Large Image :  PDRH125D Series 1.5uH~100uH Square High quality competitive shielded SMD Power Inductors Replace Wurth744874 series

Product Details:

Place of Origin: Dongguan, China
Brand Name: P&Z
Certification: ISO9001:2015
Model Number: PDRH125D Series SMD shielded coupled inductor

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: To be confirmed
Packaging Details: Reel+Carton
Delivery Time: around 3-4 Weeks
Payment Terms: T / T in advance
Supply Ability: 1000K
Contact Now
Detailed Product Description

PDRH125D Series 1.5uH~100uH Square High quality competitive shielded SMD Power Inductors Replace Wurth744874 series



Features:



  • 1:1 transformer
  • Double inductor with two identical windings
  • 5 different sizes available
  • Operating temperature: –40 ºC to +125 ºC
  • Recommended solder profile: Reflow
  • Custom designs on request

Applications

  • For SEPIC and CUK topologies
  • Flyback applications
  • Switching regulators with second, unregulated output voltage

Electrical Characteristics:



Part Code Inductance Test conditions DC-Resistance Rated Current Saturation current
PDRH125D-1R8M 1.5uH ±20% 1KHZ/0.25V 16mΩ Max 5.8A Max 14.0A Max
PDRH125D-2R4M 2.4uH ±20% 1KHZ/0.25V 18mΩ Max 5.0A Max 11.0A Max
PDRH125D-3R3M 3.3uH ±20% 1KHZ/0.25V 22mΩ Max 4.9A Max 8.9A Max
PDRH125D-4R7M 4.7uH ±20% 1KHZ/0.25V 28mΩ Max 4.0A Max 8.0A Max
PDRH125D-6R8M 6.8uH ±20% 1KHZ/0.25V 32mΩ Max 3.9A Max 6.8A Max
PDRH125D-100M 10uH ±20% 1KHZ/0.25V 44mΩ Max 3.2A Max 5.2A Max
PDRH125D-220M 22uH ±20% 1KHZ/0.25V 80mΩ Max 2.4A Max 3.3A Max
PDRH125D-470M 47uH ±20% 1KHZ/0.25V 180mΩ Max 1.5A Max 2.7A Max
PDRH125D-101M 100uH ±20% 1KHZ/0.25V 320mΩ Max 1.2A Max 1.7A Max

1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value
or the temperature rise is △T=40℃ ,whichever is smaller(Ta=20℃).

Acceptable customers design cust
