PDRH73D Series 1.3uH~100uH Square High quality competitive shielded SMD Power Inductors Replace Wurth744878 series

PDRH73D Series 1.3uH~100uH Square High quality competitive shielded SMD Power Inductors Replace Wurth744878 series

China PDRH73D Series 1.3uH~100uH Square High quality competitive shielded SMD Power Inductors Replace Wurth744878 series supplier
PDRH73D Series 1.3uH~100uH Square High quality competitive shielded SMD Power Inductors Replace Wurth744878 series supplier PDRH73D Series 1.3uH~100uH Square High quality competitive shielded SMD Power Inductors Replace Wurth744878 series supplier PDRH73D Series 1.3uH~100uH Square High quality competitive shielded SMD Power Inductors Replace Wurth744878 series supplier PDRH73D Series 1.3uH~100uH Square High quality competitive shielded SMD Power Inductors Replace Wurth744878 series supplier PDRH73D Series 1.3uH~100uH Square High quality competitive shielded SMD Power Inductors Replace Wurth744878 series supplier

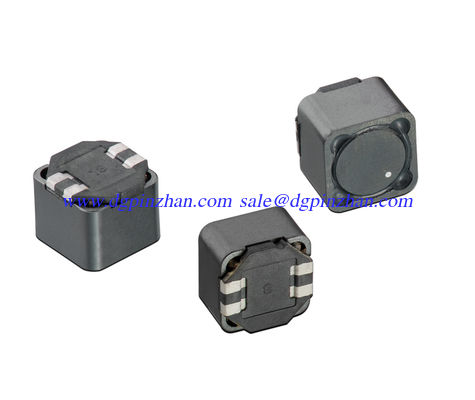

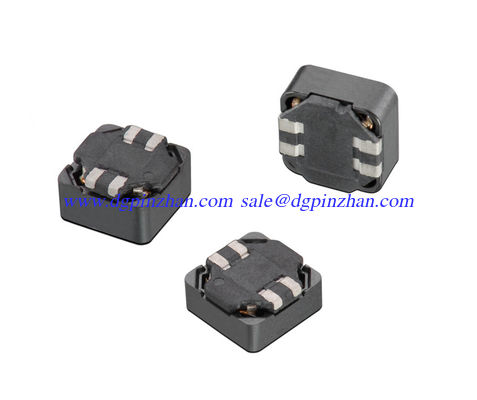

Large Image :  PDRH73D Series 1.3uH~100uH Square High quality competitive shielded SMD Power Inductors Replace Wurth744878 series

Product Details:

Place of Origin: Dongguan, China
Brand Name: P&Z
Certification: ISO9001:2015
Model Number: PDRH73D Series SMD shielded coupled inductor

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: To be confirmed
Packaging Details: Reel+Carton
Delivery Time: around 3-4 Weeks
Payment Terms: T / T in advance
Supply Ability: 1000K
Contact Now
Detailed Product Description

PDRH73D Series 1.3uH~100uH Square High quality competitive shielded SMD Power Inductors Replace Wurth744878 series



Features:



  • 1:1 transformer
  • Double inductor with two identical windings
  • 5 different sizes available
  • Operating temperature: –40 ºC to +125 ºC
  • Recommended solder profile: Reflow
  • Custom designs on request

Applications

  • For SEPIC and CUK topologies
  • Flyback applications
  • Switching regulators with second, unregulated output voltage

Electrical Characteristics:



Part Code Inductance Test conditions DC-Resistance Rated Current Saturation current
PDRH73D-1R3M 1.3uH ±20% 1KHZ/0.25V 35mΩ Max 4.4A Max 6.3A Max
PDRH73D-2R4M 2.4uH ±20% 1KHZ/0.25V 52mΩ Max 3.6A Max 4.8A Max
PDRH73D-3R3M 3.3uH ±20% 1KHZ/0.25V 65mΩ Max 3.3A Max 4.0A Max
PDRH73D-4R7M 4.7uH ±20% 1KHZ/0.25V 75mΩ Max 1.3A Max 3.0A Max
PDRH73D-5R6M 5.6uH ±20% 1KHZ/0.25V 120mΩ Max 1.5A Max 3.0A Max
PDRH73D-6R8M 6.8uH ±20% 1KHZ/0.25V 135mΩ Max 1.2A Max 2.5A Max
PDRH73D-8R2M 8.2uH ±20% 1KHZ/0.25V 140mΩ Max 1.3A Max 2.7A Max
PDRH73D-100M 10uH ±20% 1KHZ/0.25V 165mΩ Max 1.0A Max 2.0A Max
PDRH73D-220M 22uH ±20% 1KHZ/0.25V 300mΩ Max 0.7A Max 1.5A Max
PDRH73D-470M 47uH ±20% 1KHZ/0.25V 750mΩ Max 0.9A Max 1.0A Max
PDRH73D-101M 100uH ±20% 1KHZ/0.25V 1.73Ω Max 0.3A Max 0.7A Max

1.Inductance is measured with a LCR meter:HP4284A & 3532-50 or equivalent.
2.D.C .R is measured with a Digital Multimeter TH2512B or equivalent.
3.Rated Current:The rated current is the current at which the inductance decreases by 25% from the initial value
or the temperature rise is △T=40℃ ,whichever is smaller(Ta=20℃).
